Active Directory Setup Guide on Windows Server 2016 Technical Preview 4

What’s new in Active Directory Domain Services (AD DS) in Windows Server Technical Preview: https://technet.microsoft.com/en-us/library/mt163897.aspx

The following new features in Active Directory Domain Services (AD DS) improve the ability for organizations to secure Active Directory environments and help them migrate to cloud-only deployments and hybrid deployments, where some applications and services are hosted in the cloud and others are hosted on premises. The improvements include:

This post will show the step-by-step installation of a new Active Directory  in Windows Server 2016 Technical Preview 4.

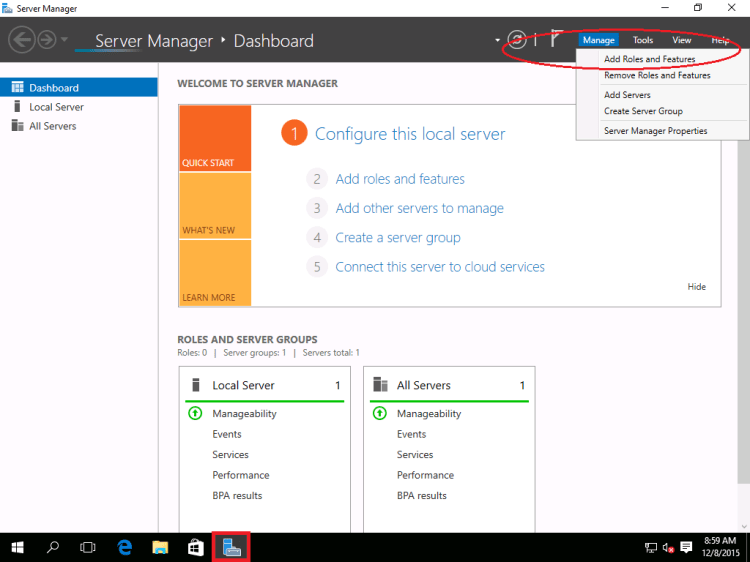

After installing Windows Server 2016 Technical Preview 4 log on the server as Administrator and launch Server Manager and install the AD DS role

AD-Install-01

In Server Manager, click Manage then Add Roles and Features.

AD-Install-02

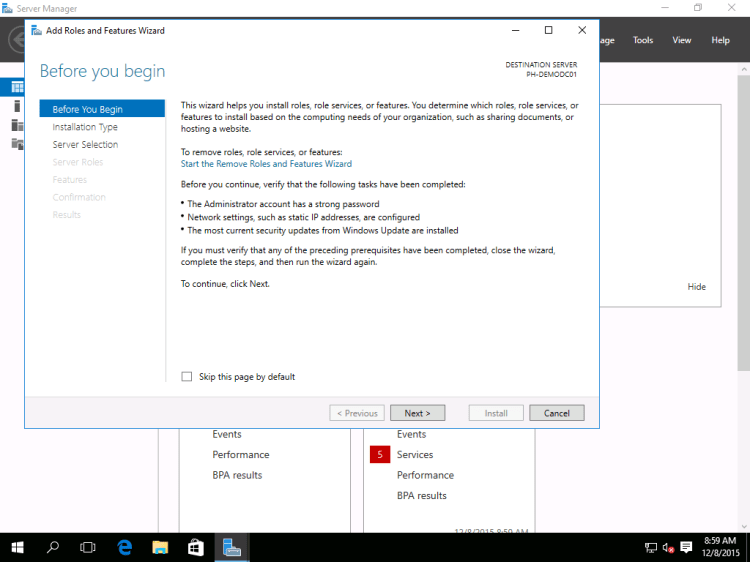

In the Add Roles and Feature Wizard, click Next.

AD-Install-03

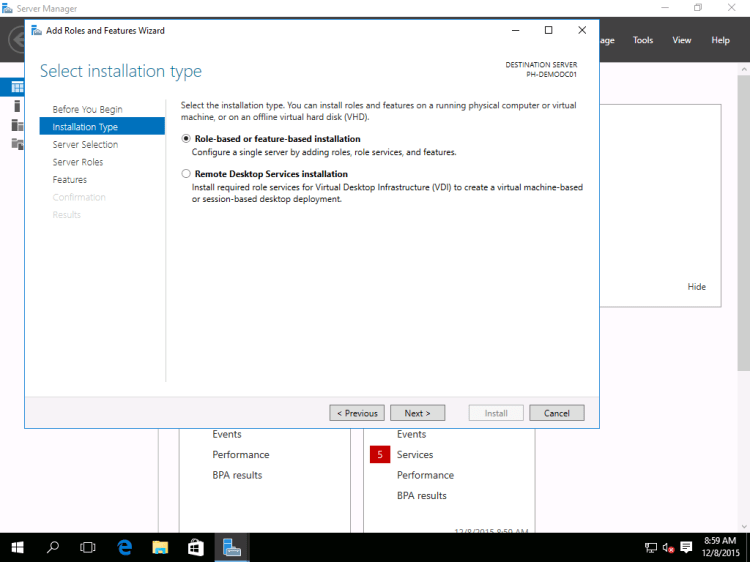

By default, Role-based or feature-based installation is selected, click Next.

AD-Install-04

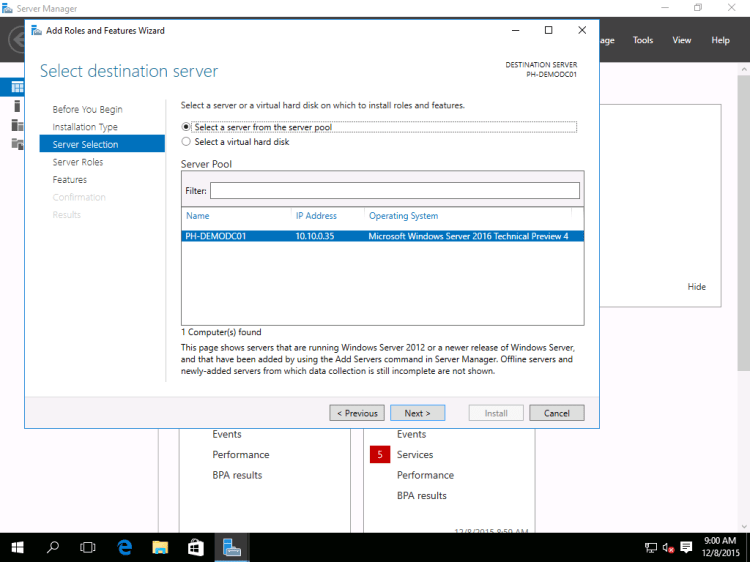

In the Server Selection, select a server from the server pool and click Next.

AD-Install-05

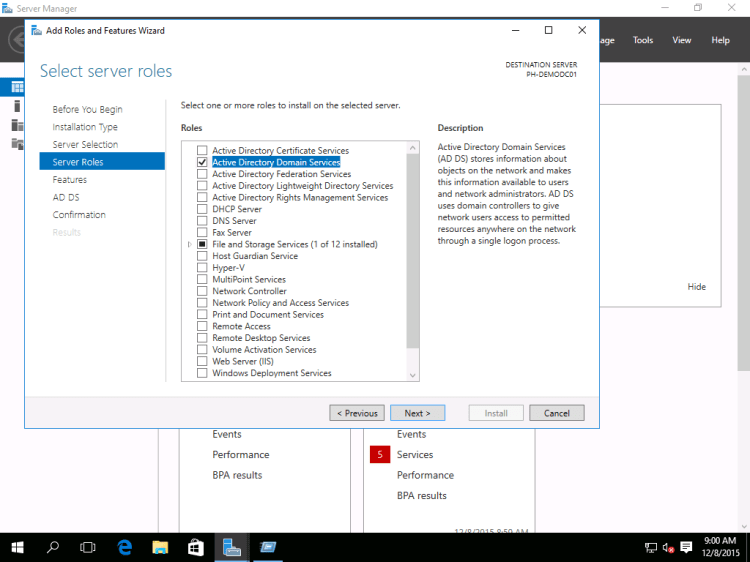

In the Select server roles page, tick on Active Directory Domain Server and click Next.

AD-Install-06

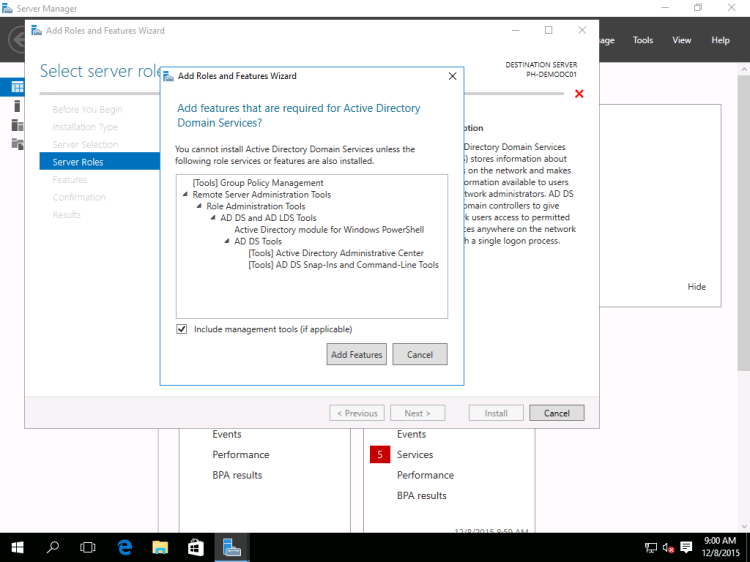

A pop-up will appear asking to Add features that are required for Active Directory Services, click on the Add Features button.

AD-Install-07

click Next.

AD-Install-08

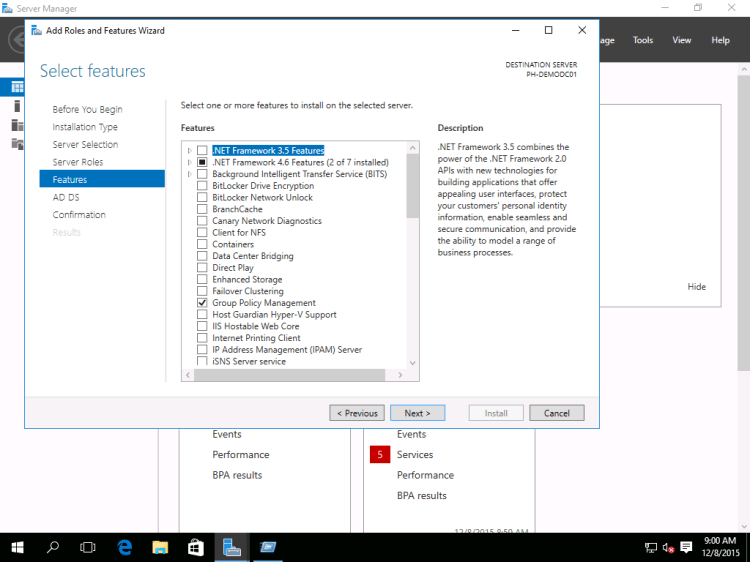

In the Select features page, click Next.

AD-Install-09AD-Install-10

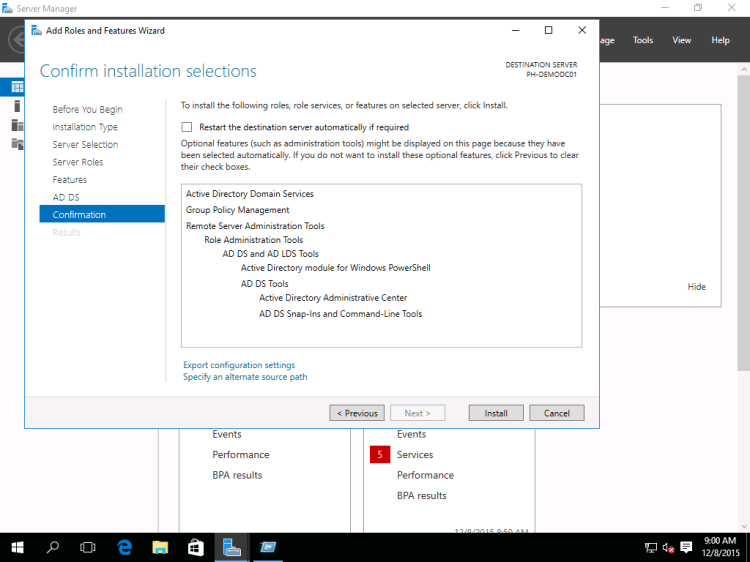

In the Confirm installation selections, click Install.

AD-Install-11

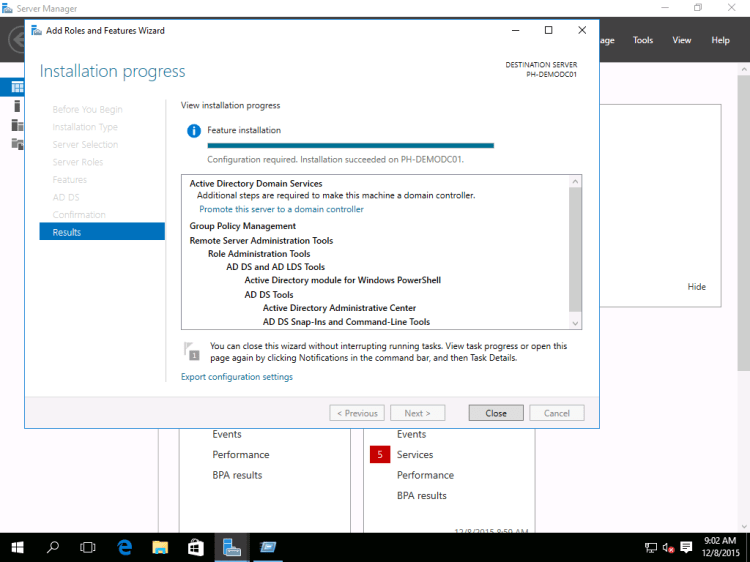

Confirm that the AD DS installation has succeeded and it’s now time promote the server to a Domain Controller.

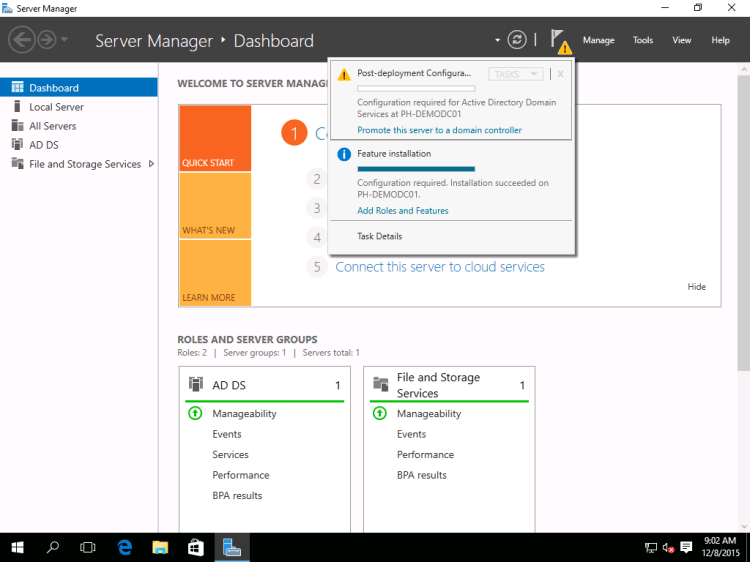

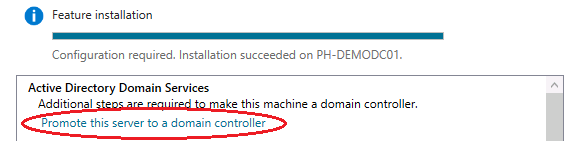

Click on the Promote this server a to domain controller from the Results page of the Add Roles and Features Wizard. Or if you closed the wizard, you can access the Post-deployment Configuration from the Server Manager.

AD-Install-12

After clicking the Promote this server a to domain controller the Active Directory Domain Services Configuration Wizard will appear.

AD-Install-13

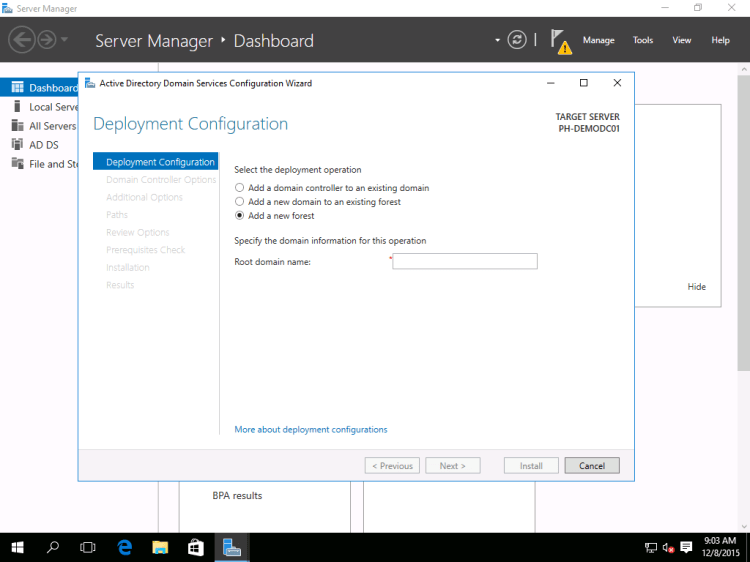

In the Deployment Configuration, select the Add a new forest and type the Root domain name, e.g., phiwug.org

AD-Install-14

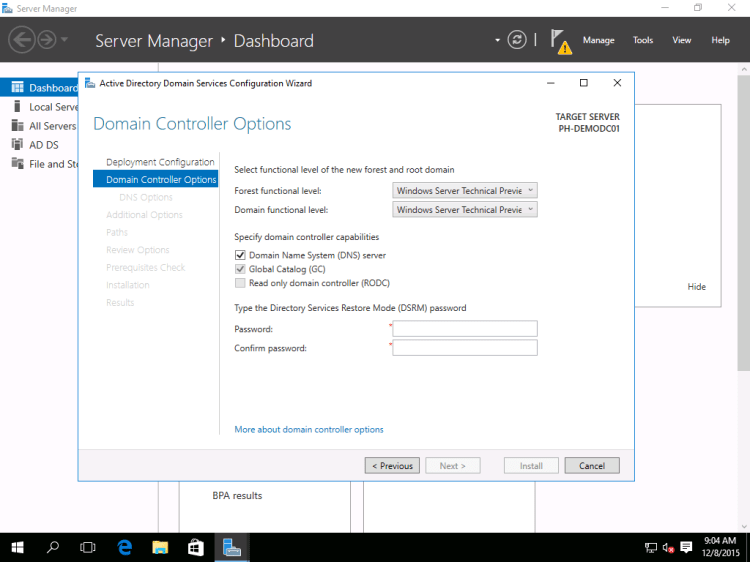

In the Domain Controller Options, select the Forest and Domain functional levels and type a Directory Service Restore Mode (DSRM) password and click Next.

AD-Install-15

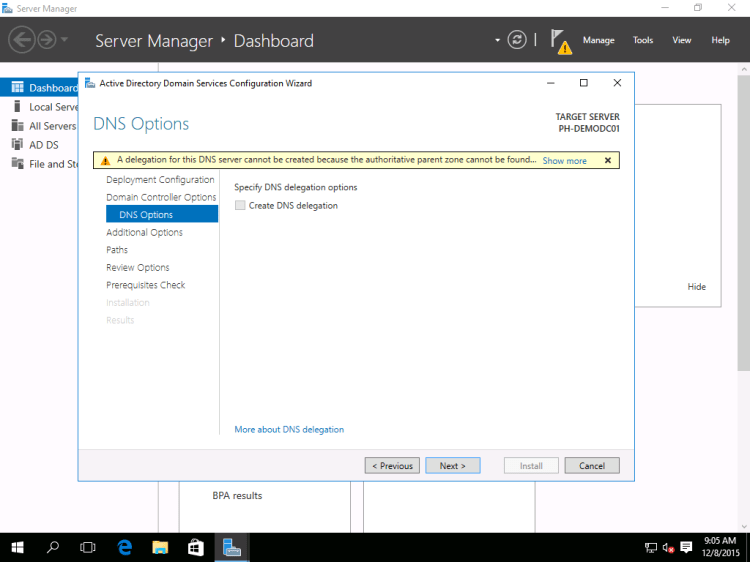

In the DNS Options, click Next.

AD-Install-16

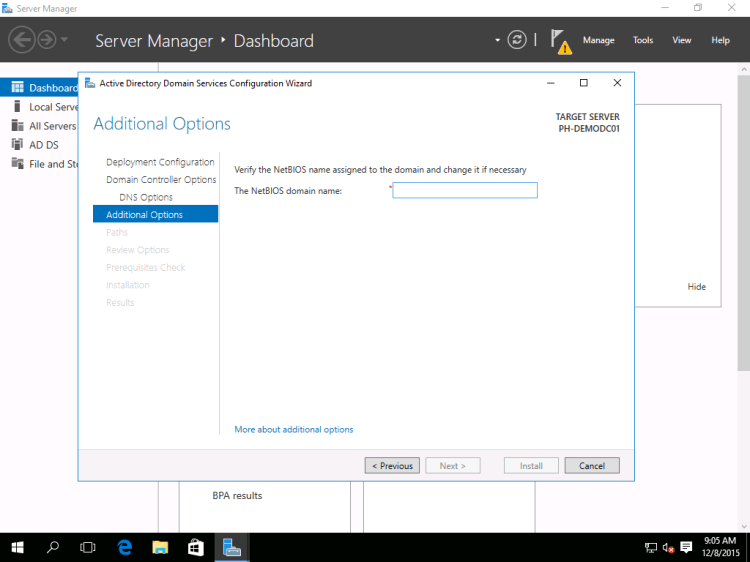

In the Additional Options, a NetBIOS domain will be generated based from the Root domain name that has been entered, otherwise this can be changed.

AD-Install-17

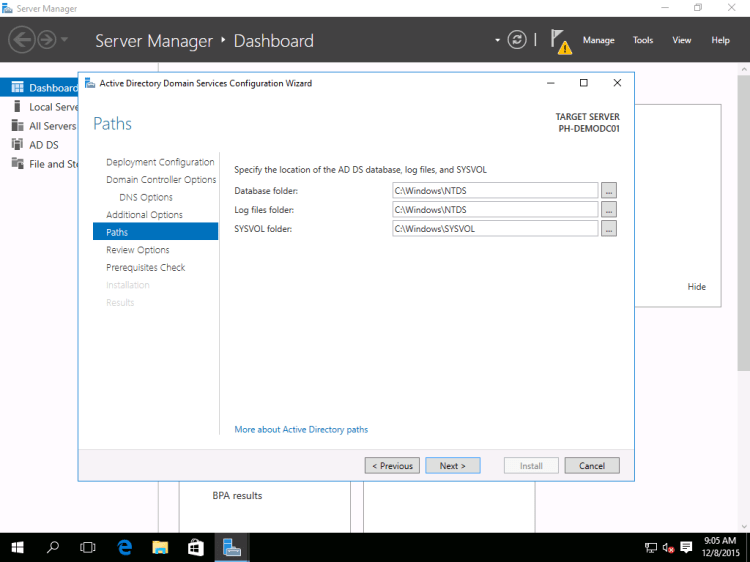

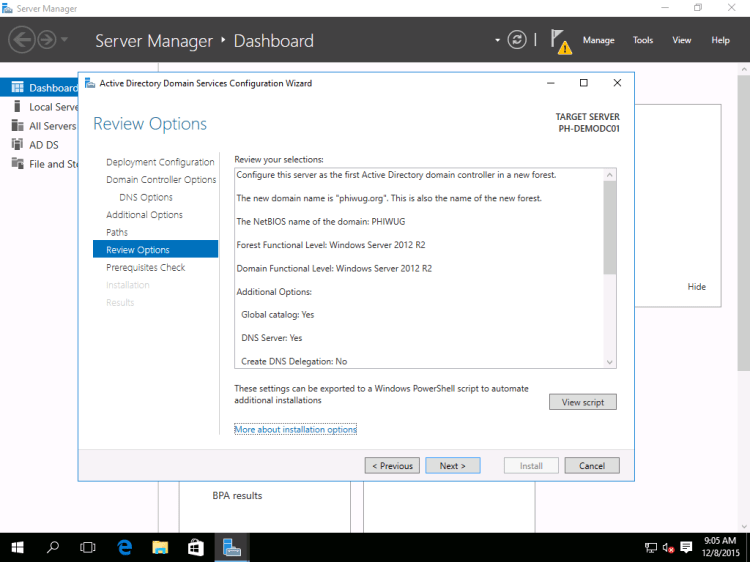

In the Paths’ page leave the default, click Next.

AD-Install-18

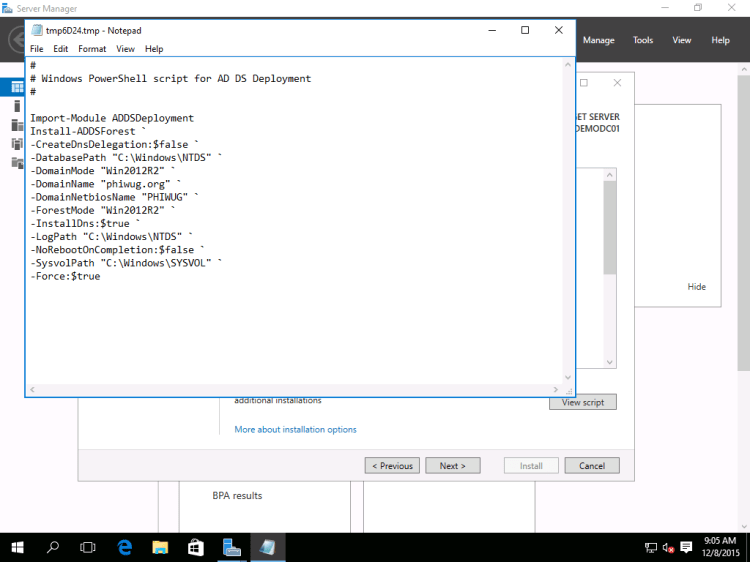

In the Review Option page, run through the selection before proceeding. Click View script to view the PowerShell script the will run behind the UI for the DC promo.

AD-Install-19

Note the notepad, and click Next.

AD-Install-20

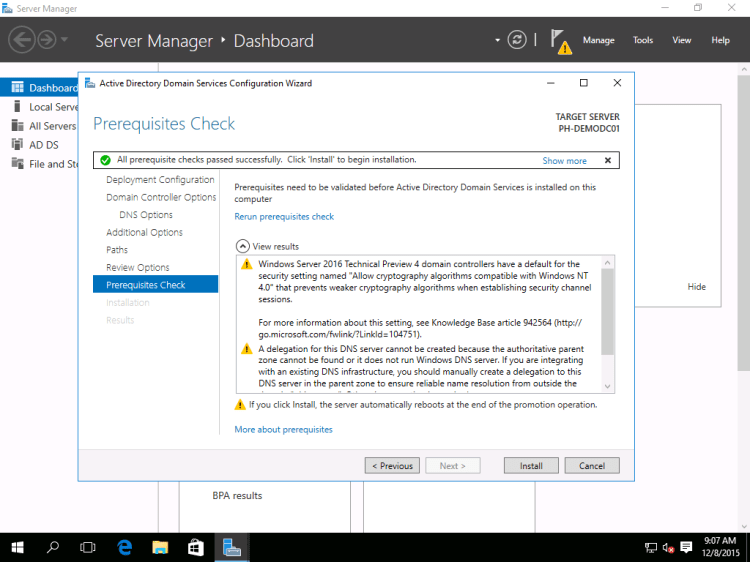

After all prerequisite checks passed successfully, click on the Install button. The server will restart to compete the Active Directory Domain Controller installation.

AD-Install-21
